SSL证书请求文件(CSR)生成指南 - Apache SSL / Apache ModSSL

重要注意事项 An Important Note Before You Start

在生成CSR文件时同时生成您的私钥,如果您丢了私钥或忘了私钥密码,则颁发证书给您后不能安装成功!您必须重新生成私钥和CSR文件,免费重新颁发新的证书。为了避免此情况的发生,请在生成CSR后一定要备份私钥文件和记住私钥密码,最好是在收到证书之前不要再动服务器。

By far the most common problem users have when going through this process is related to private keys. If you lose or cannot access a private key, you cannot use the certificate we issue to you and will need to request a free reissue. To ensure this never happens, we advise that a backup of the private key file is made and that a note is made of the password that is used to protect the export of the private key.

“openssl”用于生成私钥和CSR,OpenSSL一般安装在/user/bin下,如果您的系统安装在其他目录,请指定正确的目录路径。

The utility "openssl" that you use to generate the private key and CSR comes with the OpenSSL toolkit and is usually installed under /usr/bin. If you have installed it elsewhere you will need to modify these instructions appropriately.

以下所有命令假设您已经成功安装OpenSSL,将产生2048位的密钥,加密算法采用3DES,您必须使用您要申请SSL证书的域名来命名密钥文件。

The following sequence of commands will generate a 2048 bit key, encrypt it using the triple-DES cipher, and create a CSR based upon it (they assume that you have openssl in your path - if not then you should prefix the openssl command with the path to the binary). You should use the domain name that you are wishing to have certified as the core of the filenames. You should also make sure you do not overwrite existing keys and CSR's:

1. 生成私钥 Generate the private key

请使用以下命令来生成私钥 Please type the following command at the prompt:

openssl genrsa -des3 -out www.mydomain.com.key 2048

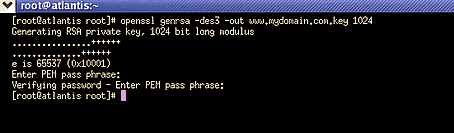

如上图所示,此命令将生成2048位的RSA私钥,私钥文件名为: www.mydomain.com.key,会提示您设定私钥密码,请设置密码,并牢记!

This command will generate a 1024 bit RSA private key and stores it in the file www.mydomain.com.key. It will ask you for a pass phrase: use something secure and remember it. Your certificate will be useless without it's corresponding key.

2. 生成CSR文件 Generate the CSR

请使用以下命令来生成CSR Please type the following command at the prompt:

openssl req -new -key www.mydomain.com.key -out www.mydomain.com.csr

如果提示“Unable to load config info from /usr/local/ssl/openssl.cnf ”,则加上一个指定openssl.cnf 路径的参数:

openssl req -new -config openssl.cnf -key www.mydomain.com.key -out www.mydomain.com.csr

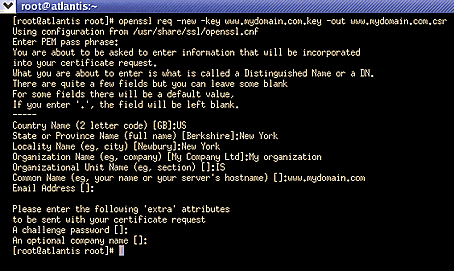

此命令将提示您输入X.509证书所要求的字段信息,包括国家(中国添CN)、省份、所在城市、单位名称、单位部门名称(可以不填直接回车)。请注意:除国家缩写必须填CN外,其余都可以是英文或中文。

This command will prompt you for the X.509 attributes of your certificate. Enter your country, state or province and locality or city. You should enter the company name as it appears on your official company registration documents. The organization unit is optional, we verify and authenticate the company name and not the organization unit. To skip the organization unit (OU) field please press enter on your keyboard.

请输入您要申请SSL证书的域名,如果您需要为www.domain.com申请SSL证书就不能只输入domain.com。SSL证书是严格绑定域名的。

The term "Common Name" is X.509 speak for the name that distinguishes the certificate best, and ties it to your Organization. Enter your exact host and domain name that you wish to secure. Example: If you wish to secure www.mydomain.com, then you will need to enter the exact host (www) and domain name (mydomain.com) in this field. If you enter mydomain.com then the certificate issued to you will only work error free on https://mydomain.com. It will cause a certificate mismatch error when you or your users access the domain via https:// www.mydomain.com.

请不要输入Email、口令(challenge password)和可选的公司名称,直接打回车即可。

Please do not enter your email address, challenge password or an optional company name when generating the CSR.

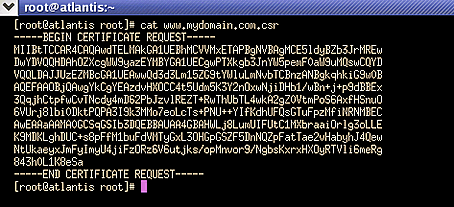

您现在已经成功生成了密钥对,私钥文件:www.mydomain.com.key 保存在您的服务器中, 请把CSR文件:www.mydomain.com.csr 发给WoSign即可,CSR文件格式如下图所示。

You have now created a public/private key pair. The private key (www.mydomain.com.key) is stored locally on your machine and is used for decryption. The public portion is sent to thawte in the form of a Certificate Signing Request, and will be used by your users to encrypt the data they send to your site. The Certificate Signing Request (CSR) looks something like this:

您也可以直接使用一个命令同时生成私钥和CSR文件:

openssl req -newkey rsa:2048 -keyout yourname.key –out yourname.csr

openssl req -new -config openssl.cnf -nodes -keyout myserver.key -out myserver.csr

3. 备份私钥文件 Backup your private key

请备份您的私钥文件并记下私钥密码。最好是把私钥文件备份到软盘或光盘中。

Please backup your keystore file and make a note of the password. A good choice is to create a copy of this file onto a diskette or other removeable media.

4. 测试CSR和把CSR发给WoSign Start the WoSign certificate request process

生成CSR后,建议您自己测试一下生成的CSR文件是否正确,请点击 这里 测试您的CSR文件。请把测试成功的CSR文件发给WoSign即可。请一定不要再动您的服务器,等待证书的颁发。

To submit the CSR to WoSign for processing you should start the certificate enrollment process.
